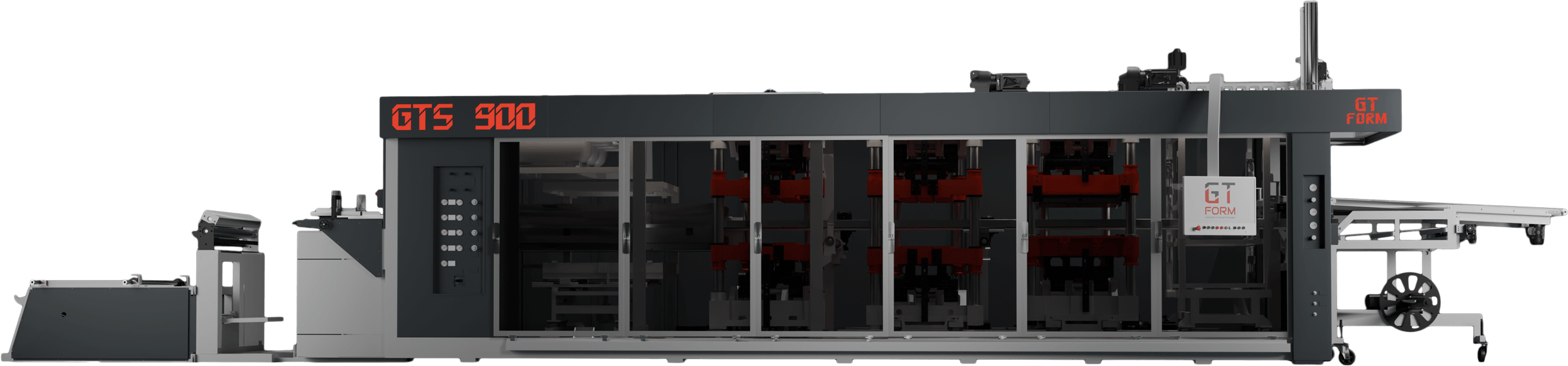

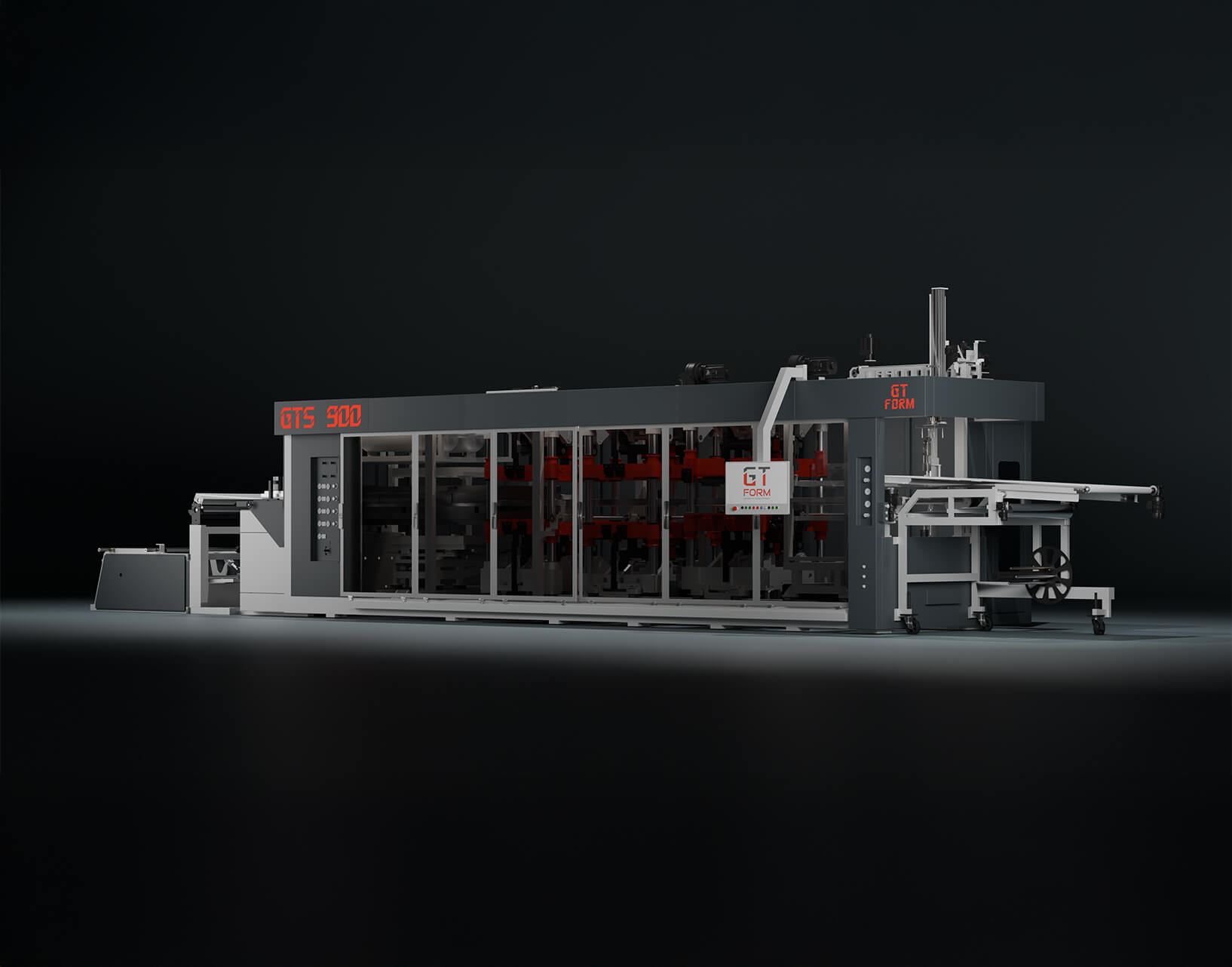

GTS 900

GTS 900 is an automatic pressure forming machine with stell rule cutting technology

High Speed

Big Forming Area

Nature & Environment Friendly System

Technical Specifications

Cycle/Speed 70 cycles/minute
Mould Area 900 mm x 850 mm
Positive Stroke 150 mm
Negative Stroke 150 mm
Production Material PP, PET, PS, PVC, OPS, PLA
Vacuum Pomp Capacity 100m³ /h - 3 kW
Air Requirement 7 bar / 8m³
Thickness Range of Material 1.5 mm (Max.) PET
2.0 mm PS, OPS, PVS, PP
Length of The Heater Pan 2300 mm
Main Lubrication 248 Points automatic
Electricity 3 phase 380 volt 50 Hz
