GT 8565 M

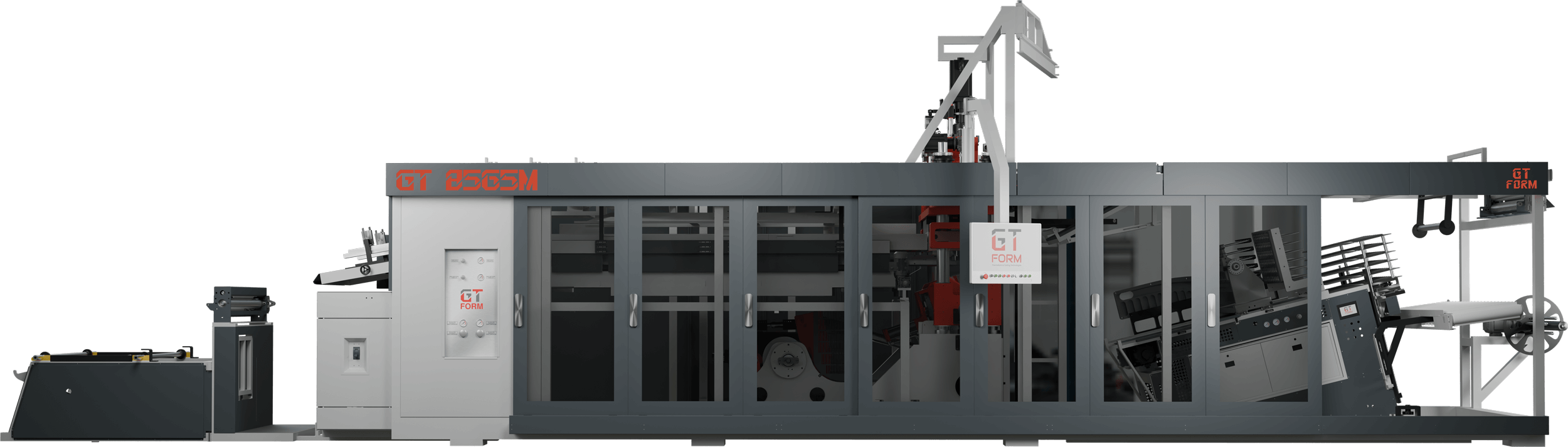

GT 8565 M is an automatic tilting thermoforming machine with in-mould cutting technology
High Speed
Big Forming Area
Nature & Environment Friendly System
Optional Tool Sizes
| Diameter | Cavity Number | Model | Production Material |
| 71 mm | 54 Cavity | Drinking Cup | PP, PS, PET, PLA |
| 75 mm | 48 Cavity | Dairy Cup | PP, PS, PET, PLA |
| 80 mm | 40 Cavity | Juice Cup | PP, PS, PET, PLA |
| 95 mm | 35 Cavity | Dairy & Juice Cup | PP, PS, PET, PLA |
| 100 mm | 30 Cavity | Dairy & Juice Cup | PP, PS, PET, PLA |
| 118 mm | 24 Cavity | Dairy & Juice Cup | PP, PS, PET, PLA |
Technical Specifications
| Cycle/Speed | 35 cycles/minute |
|---|---|
| Capacity/Hour | 113.400 pcs/hour |
| Production Material | PP, PS, PET, PLA |
| Forming Area | 850 mm x 650 mm |
| Forming Depth | 250 (max) |
| Width of Sheet | 810 mm |
| Thickness Range of Material | 0,4 mm - 2,0 mm |
| Plug Assist | Servo Drive Plug Assist |
What GT 8565 M do?
Cups
Our machines are designed differently from standard thermoforming machines — instead of relying on the operator’s craftsmanship, we have built that expertise directly into the machine, ensuring consistent, efficient, and high-quality production.

Coffee
Our machines are designed differently from standard thermoforming machines — instead of relying on the operator’s craftsmanship, we have built that expertise directly into the machine, ensuring consistent, efficient, and high-quality production.

Yogurt
Our machines are designed differently from standard thermoforming machines — instead of relying on the operator’s craftsmanship, we have built that expertise directly into the machine, ensuring consistent, efficient, and high-quality production.
